Pomp en tank zijn ontworpen om condensaat op te vangen en af te voeren. De kleine afmetingen en de gemakkelijke bedrading maken de installatie van het product zeer eenvoudig en flexibel.
Installatie in het kanaal kan zowel rechts als links van de airconditioner plaatsvinden. Het alarmsignaal omvat een dubbel contact, normaal open of gesloten.

Description

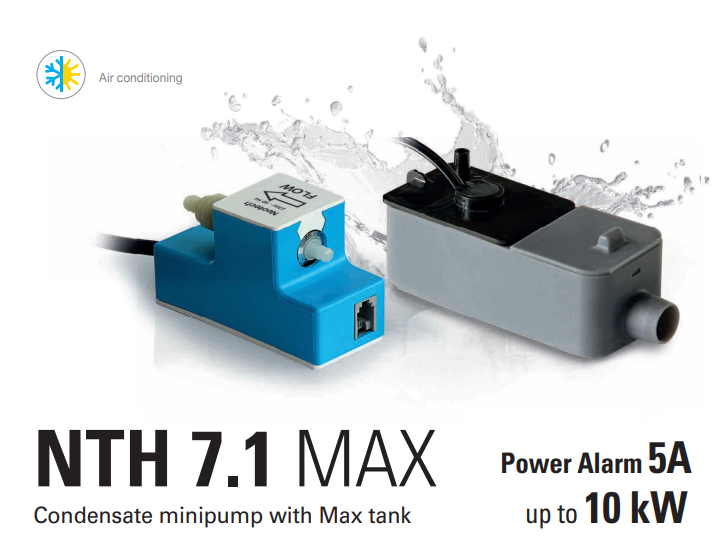

The pump and the tank are designed to collect and discharge the condensate.
The small dimensions and the fast wiring make the installation easy and fl exible.
The duct can be installed on the left or on the right of the air-conditioning system.
The alarm signal includes double contacts normally open or closed. The Max tank
doubles the condensate holding capacity.

• Condensate minipump
  mm 91 x 33,5 x H 51 with power and alarm cables 2 m
• Extra large tank
  mm 126 x 45 x H 34,5
• Inlet pipe
  cm 10 x Ø 15 mm
• Breather tube cm 10 x Ø 5 mm
• Connecting pipe
  pump-tank 1 mt x Ø 4 mm
• Discharge pipe
  2 mt x Ø 6 mm
• Double sided tape
  To fi x pump and tank

Pump technical data

• Max fl ow ......................................................7,5 l/h
• Max suction .. ................................................ 2 m
• Max head ..................................................... 22 m
• Voltage .............................................. 230V - 50Hz
• Max rated current.......................................30 mA
• Alarm contacts ............NC-NA 5A Resistive 250V
• Weight ........................................................ 1,1 Kg
• Stainless steel inlet fi lter........................Ø 0,2 mm
• Protection class ............................................ IP20

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
