Description

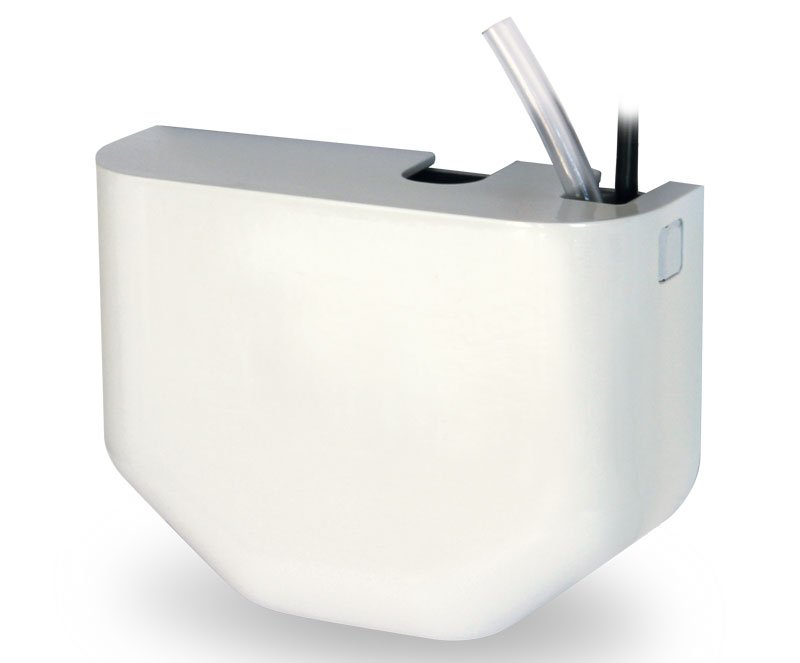

UNDERSPLIT 10 is a compact condensate collection and drainage system with an attractive design, created to be installed underneath high-wall indoor units. It allows easy access for maintenance work.

Into the box?:

• Minipump
   mm 165 x 55 x H 126 wired with 2 m power cable and alarm
• Delivery pipe
   2 mt x Ø 6 mm
• Kit
  Fixing screws kit

Pump technical data

• Max flow ......................................................11 l/h
• Max head .....................................................22 m
• Voltage ..............................................230V - 50Hz
• Max rated current......................................30 mA
• Alarm contacts .............................NC-NA 5A 50V
• Weight ........................................................1,2 Kg
• Stainless steel inlet fi lter........................Ø 0,2 mm
• Protection class ............................................IP20
• Power cable ...................................................2 m
• Inlet pipe.......................................max Ø 22 mm
• Outlet pipe..............................................Ø 6 mm
• Certification..................................................... CE
• RoHS 2 compliant ................................ Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
