NEOTECH NTH 14-E800 CONDENSWATERPOMP CONDENSATE MINIPUMP

salesteam@ziggo.nl
NEOTECH NTH 14-E800 CONDENSWATERPOMP CONDENSATE MINIPUMP, UP TO 15 Kw.
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Preassembled system with condensate minipump.

It is a ready-to install pump-system to remove the condensate.

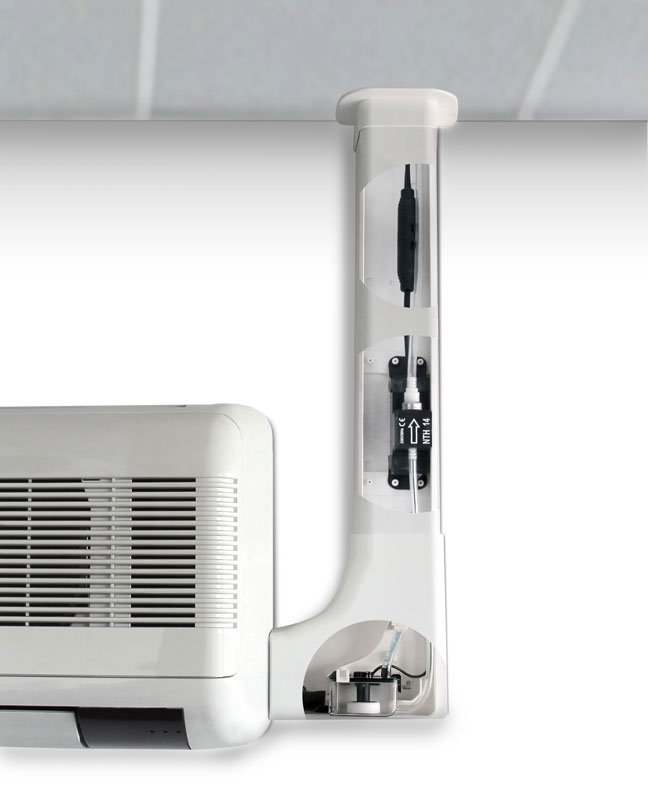

The wall mounting allows to install the tank on the left or the right ofthe air-conditiong unit.
The alarm signal has two contacts NO/NC

Description

It is a ready-to install pump-system to remove the condensate. The wall mounting allows to install the tank on the left or the right of the airconditiong unit. The alarm signal includes double contacts normally open or closed.

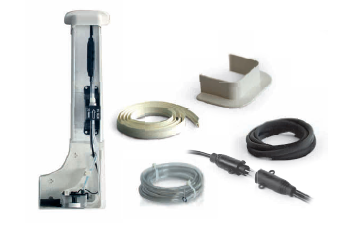

Into the box

• Preassembled kit
   Wired minipump Extra large tank
• Connector
   Fast electrical connection
• Inlet pipe
   cm 50 x Ø 15 mm
• Discharge pipe
  2 mt x Ø 6 mm preassembled
• Gasket
  for supporting conditioning duct

Pump technical data

• Max flow ......................................................11 l/h
• Max suction .. ................................................2 m
• Max head .....................................................22 m
• Duct.............................................80x60x970 mm
• Voltage ..............................................230V - 50Hz
• Max rated current......................................50 mA
• Alarm contacts ......... NC-NA 10A Resistive 250V
• Weight ........................................................1,6 Kg
• Stainless steel inlet filter........................Ø 0,2 mm
• Protection class ............................................IP20
• Certification..................................................... CE
• RoHS 2 compliant ................................ Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
