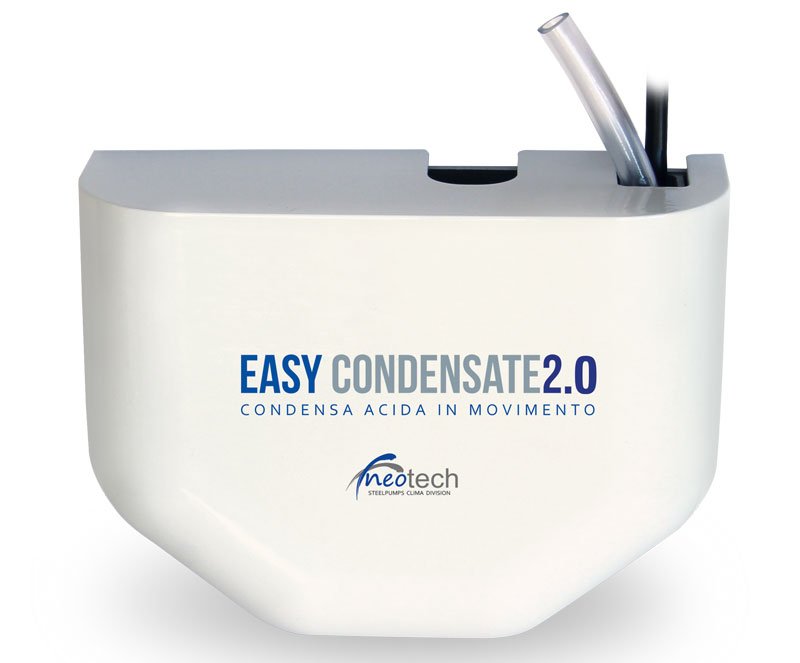

NEOTECH EASY CONDENSATE 2.0 CONDENSWATERPOMP CONDENSATE MINIPUMP

salesteam@ziggo.nl
NEOTECH EASY CONDENSATE 2.0 CONDENSWATERPOMP CONDENSATE MINIPUMP Max 34 kW Sound level 21 dBA
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Description
EASY CONDENSATE 2.0 is a system of pleasing design, created for collecting and draining acid condensate from the gas boiler. The quality of the materials used allows its use particularly in the f i eld of heating. Its small and compact dimensions enable its easy installation. The system is equipped with an extremely quiet pump and tank with inlet filtration.

Into the box
• Minipump
   mm 165 x 55 x H 126 wired with 2 m power cable and alarm
• Delivery pipe
   2 mt x Ø 6 mm
• Kit
   Fixing screw kit

Pump technical data
• Max flow......................................................12 l/h
• Max head......................................................19 m
• Voltage..............................................230V - 50Hz
• Absorption max............................................30 W
• Alarm contacts..............................NA NC 5A 50V
• Weight........................................................1,2 Kg
• Stainless steel inlet fi lter from..............Ø 0,2 mm
• Protection class............................................ IP20
• Condensate max condense......................... 60°C
• Condensate PH.............................higher than 2,7
• Electric cable...................................................2 m
• Inlet pipe........................................max Ø 22 mm
• Internal pipe delivery ...............................Ø 6 mm
• Certification..................................................... CE
• RoHS 2 compliant .................................Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
