NEOTECH NTH 330 XPH CONDENSWATERPOMP CONDENSATE MINIPUMP

salesteam@ziggo.nl

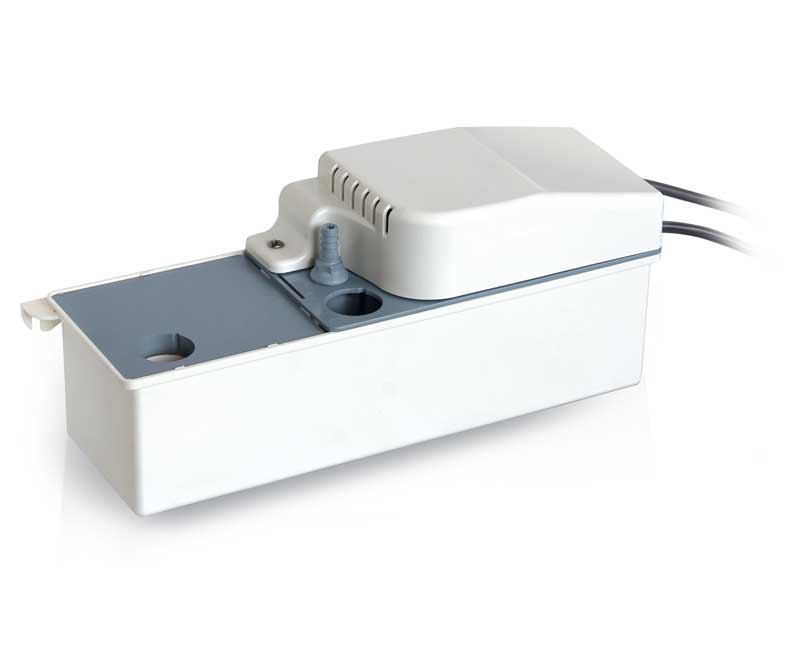

NEOTECH NTH 330 XPH CONDENSWATERPOMP CONDENSATE MINIPUMP
Acid condensate pump with neutralizer.
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Up to 50 kW

Description
The pump is designed and built to recover
and discharge the condensate coming
from the boilers.
The monobloc solution with neutralizer is
suitable for all kind of installations, overall
when it is not possible to discharge for
gravity. The replacement of neutralizer is
easy and fast.

Into the box

• Pump
   mm 330 x 104 x H 134 wired with 2 m power cable and alarm
• Neutralkit
   Neutralizer granular refill
• Delivery pipe
  6 mt x Ø 8 mm
• Inlet pipe adapter
  pipe Ø 50 mm - Ø 25 mm
• Damping tape
  Can be used laterally or under the tank

Pump technical data

• Max flow.....................................................370 l/h
• Max head.....................................................4,6 m
• Voltage..............................................230V - 50Hz
• Absorption max.......................................0,75 mA
• Alarm contacts............NA NC 5A Resistive 250V
• Weight........................................................3,0 Kg
• Tank volume..................................................0,8 lt
• Protection class............................................ IP20
• Condensate max condense......................... 60°C
• Condensate PH..............................................>2,8
• Power cable, Schuko plug and alarm..............2 m
• Non return valve included........................ Ø 8 mm
• Screws, bolts, nuts.................Stainless Steel 304
• Certification..................................................... CE
• RoHS 2 compliant .................................Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
