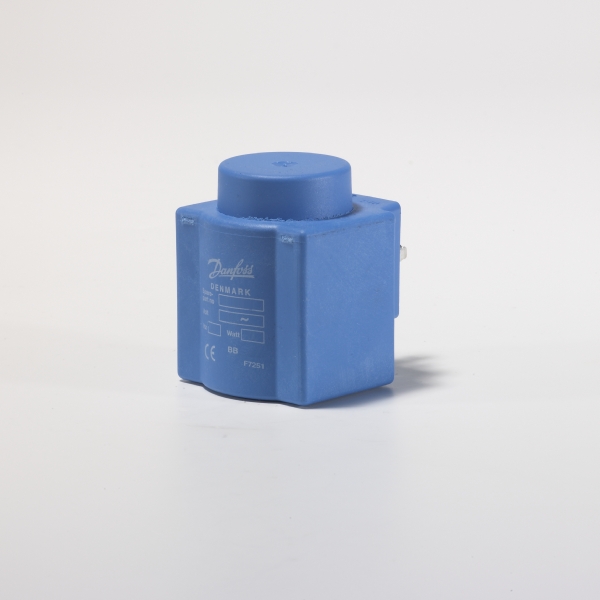

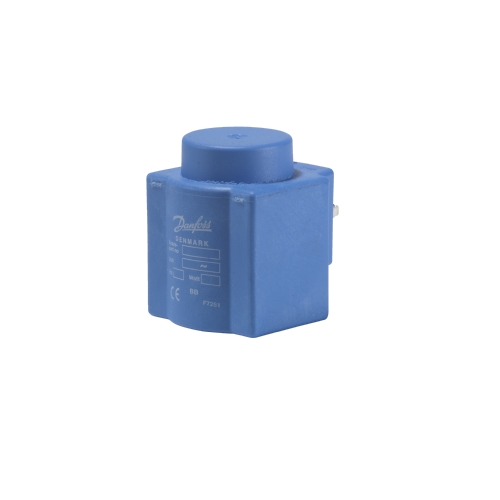

DANFOSS MAGNEETSPOEL 10W VOOR EV

salesteam@ziggo.nl
DANFOSS SOLONOIDCOIL EV
0224-850552
06-52634163.

BB024A 24V 50Hz 10W 018F7358
*Specificaties

BB110A 115V 50Hz 10W 018F7361
*Specificaties

BB220A 230V 50Hz 10W 018F7351
*Specificaties

BB240A 240V 50Hz 10W 018F7352
*Specificaties

BB380A 380V 50Hz 10W 018F7353
*Specificaties

BB024B 24V 60Hz 10W 018F7365
*Specificaties

BB110C 110V 50Hz 10W 018F7360
*Specificaties

BB220C 230V 50Hz 10W 018F7363
*Specificaties

Ambient temperature: -40 - +80°C (NC valve), -40 - +55°C (NO valve).
Permissible voltage variation: +10 - -15%, as double frequency coils: ±10%,
a.c. coils for 220-230 / 380-400 V: +6 - -15%, as double frequency coils: +6 - -10%.
Enclosure: IP 20.
DIN plug: For use with DIN socket only.
The three pins on the coil can be fitted with spade tabs, 6.3 mm wide (to DIN 46247).
The two current carrying pins can also be fitted with spade tabs, 4.8 mm wide. Max. lead cross section: 1.5 mm2.
Use of the protective cap supplied will prevent inadvertent contact with live parts.
DIN socket (to DIN 43650): Leads are connected in the socket. The socket is fitted with a Pg 11 screwed entry for 6 - 12 mm.
Holding: 10 W/21 VA.
Inrush: 44 VA.
