DANFOSS WVS WVTS KOELWATERREGELVENTIEL

salesteam@ziggo.nl
DANFOSS WVS WVTS KOELWATERREGELVENTIEL PRESSURE OPERATED WATER VALVE
0224-850552
06-52634163

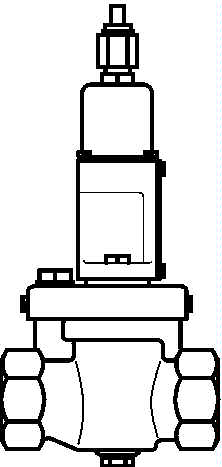

WVS, pilot valve

Servo-operated valve.
Refrigerants (condenser side): CFC, HCFC, HFC, R 717 (NH3).
Media (liquid side): fresh water, neutral brine.
Media temperature range:–25 - +90°C.
Opening differential pressure range, WVS 32-40: 0.5 - 4 bar, WVS 50-100: 0.3 - 4 bar.
Max working pressure, condenser side: 26.4 bar.
Max working pressure, liquid side: 10 bar.

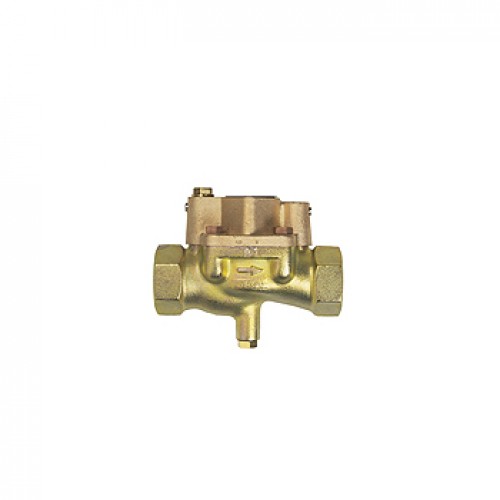

WVTS valve bodies

Servo-operated valve.
Media: fresh water, neutral brine.
Media temperature range:–25 - +90°C.
Opening differential pressure range, WVTS 32-40: 0.5 - 4 bar, WVTS 50-100: 0.3 - 4 bar.
Max working pressure: 10 bar
