Mitsubishi FDTC35VF Spareparts |
|
|
|---|---|
Mitsubishi FDTC35VF | Mitsubishi FDTC35VF |
PARTS. NO.: | PARTS. NO.: |

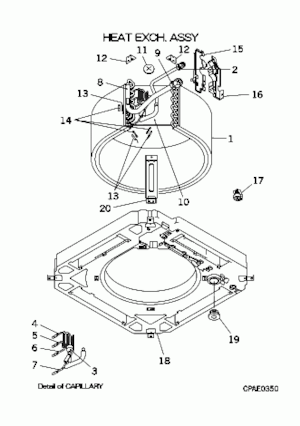

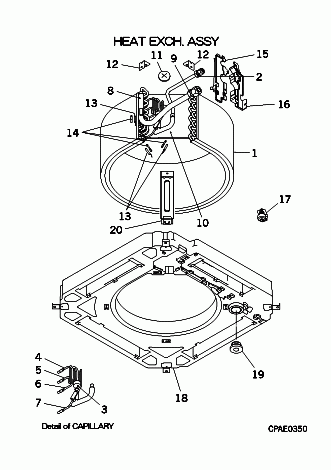

| 1-16. HEAT EXCH RWA301A003 | 1-13. CONTROL UNIT PJA501A785BC |
| 1. HEAT EXCH PJA311A780 | 1. PWB ASSY PJA505A200CA |
| 2. UNION,SOLDER SSA323F075 | 2. PWB ASSY PJA505A201LB |
| 3-7. DISTRIBUTOR ASSY PJA315A781 | 3. BLOCK,TERMINAL SSA561B702 |
| 3. DISTRIBUTOR SSA315A252A | 4. BLOCK,TERMINAL SSA561B720A |
| 4. CAPILLARY PJA315B956 | 5. GROMMET S751W25X |
| 5. CAPILLARY PJA315B956D | 6. WIRING(DM) PJA504A762A |
| 6. CAPILLARY PJA315B956B | 7. WIRING(LM) PJF504A001A |
| 7. CAPILLARY PJA315B956C | 8. WIRING(FM) PJA504A763 |
| 8-9. HEADER GAS RWA315D001 | 9. WIRING(V,LOW) PJA504A764A |
| 9. UNION(SLD) SSA323F088 | 10. WIRING(POWER) PJF504A007A |
| 10-11. PLATE BAFFLE PJA141A780A | 11. WIRING(TB,XY) PJF504A006D |
| 11. GROMMET S751W25X | 12. WIRING(PWB) PJF504A003B |
| 12. BRACKET PJF116A010 | 13. WIRING(PWB) PJF504A003C |
| 13. SENSOR (TEMP) PJF551A002D | 14. HARNESS LOW PJA504A773C |
| 14. SPRING,LEAF PSA941F001 | 15. HARNESS MOTOR PJA504A753A |
| 15. LID ASSY(A) PJA132A782 | 16. SENSOR TEMP. PJA551A010Z |
| 16. LID ASSY(B) PJA132A783 | 17. LID,CONTROL BOX PJA142A781 |
| 17. SWITCH FLOAT PJA536A700C | 18. LABEL,WIRING PJA011G783 |
| 18-19. PAN DRAIN PJA454A780 | 19. CONTROL REM. PJZ502A024AB |
| 19. PLUG SSA326A048 | 20-22. PARTS SET PJF008A001G |
| 20. BRACKET PJF116A011A | 20. HOSE,DRAIN SSA423A101 |
| 21. HOSE CLAMP V300Y38 | |
| 22. INSULATION,PIPE PJA153B007 | |
| 23. LABEL,MODEL RWA011F010F | |
|
|
Mitsubishi FDTC35VF | Mitsubishi FDTC35VF |
PARTS. NO.: | PARTS. NO.: |

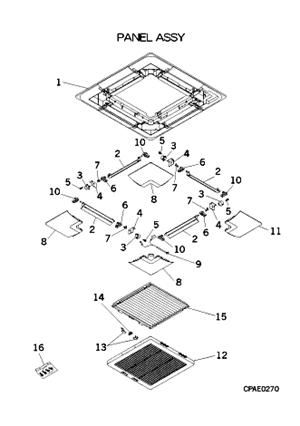

| 1-16. PANEL FRONT PJA122A750D | 1-4. CABINET ASSY PJA100A780 |
| 1-11. PANEL FRONT PJA122A751D | 2. HOLDER PJA032A780 |
| 1. PANEL,FRONT PJA122A752 | 3. HOLDER PJA032A780A |
| 2-7. LOUVER ASSY,BLOW PJA436A750 | 4. GROMMET S751W25X |
| 2. LOUVER,BLOW PJA436A751 | 5-6. SOCKET DRAIN PJF422C001 |
| 3-5. MOTOR ASSY PJA512T750 | 5. SOCKET SSA422C107 |
| 3. MOTOR,STEPPING SSA512T052 | 6. HOSE,DRAIN SSA423A100 |
| 4. BRACKET PJA116A756 | 7. PUMP DRAIN PJA451A780 |
5. TAP-SCREW, W006D04X008 | 8. MOTOR,DC SSA512T095A |
| 6. CLAMP PJA129A750 | 9. CUSHION SSA941C309 |
| 7. CRANK(A) PJA144A750 | 10. NUT,FLANGE SSA914C015 |
| 8. LID ASSY,CORNER PJA132A753 | 11. FAN,TURBO SSA431J024 |
| 9. WIRING ASSY PJF504A014A | 12. WASHER,S W205H10 |
| 10. CLAMP PJA129A750 | 13. NUT N001A10 |
| 11. LID ASSY,CORNER PJA132A753A | 14. BELLMOUTH ASSY PJA433A780 |
| 12-14. GRILLE INLET PJA435A750 | 15. WASHER,SPG W220R10 |
| 13. STOPPER,G PJA129A753 | 16. PLATE PJA129A780 |
| 14. STOPPER,F PJA129A755 | 17. HOSE,DRAIN SSA423A101 |
| 15. FILTER,AIR PJA437A750 | 18. HOSE CLAMP V300Y38 |
| 16. PARTS SET PJA437A750 |
For information or ordering spareparts please contact us: info@klimaat-totaal.nl
