Mitsubishi SRC50ZJX-S Spareparts

info@klimaat-totaal.nl

+31(0)224850552

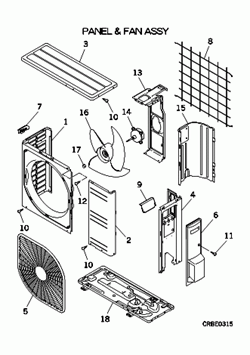

Click on drawing to enlarge

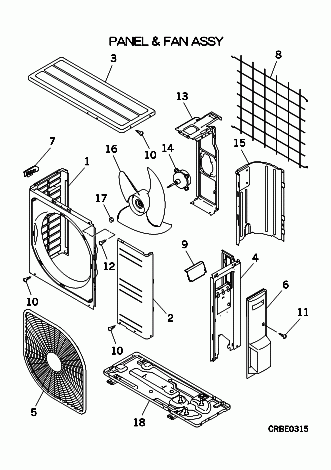

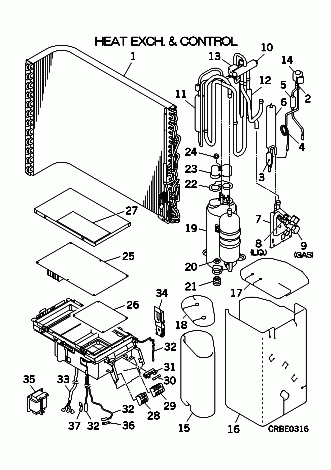

	Mitsubishi SRC50ZJX-S			Mitsubishi SRC50ZJX-S
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER
1	HEAT EXCH ASSY(AIR	RCT301A307	1	PANEL ASSY,FRONT	RCT122A003
2	PIPING ASSY(EXPAN)	RCT304A302D	2	PANEL,SERVICE	RCT122A002
2	VALVE,BODY(EXP)	SSA387F052	3	PANEL,TOP	RCT124A001
3	STRAINER	SSA357A005A	4	PANEL ASSY,REAR	RCT125A002
4	CAPILLARY	RCT315B002	5	GRILLE,AIR OUTLET	RCT435A001
5	PIPE,SHELL	RCN325A700	6	COVER ASSY,SERVICE	RCT132A002
6	PIPE,SHELL	RCM325A300D	7	HANDLE	SSA944B036B
7	BRACKET,VALVE	RCS116A004	8	GUARD,FIN	RCT131A001
8	VALVE,SERVICE(1/4"	RCS381A004A	9	COVER(TB)	RCT142A004
9	VALVE,SERVICE(1/2"	RCT381A002	10	SCREW,TAP	SSA913A034F
10	VALVE,S(4WAY)	SSA382C092	11	SCREW,TAP	SSA913A034G
11	PIPE,SHELL	SSA325A001BD	12	SCREW,TAP	SSA913A008F
12	PIPE,SHELL	SSA325A001CR	13	BRACKET,MOTOR	RCT116A003
13	COIL ASSY,SOLENOID	RSA382F013L	14	MOTOR,DC	SSA512T091A
14	COIL,SOLENOID	SSA382F210AY	15	PLATE,BAFFLE	RCT141A001A
15	INSULATION	RCT154D300	16	PROPELLER	SSA431B250
16	INSULATION	RCT154D001B	17	NUT,TH	SSA914B007AC
17	INSULATION	RCT154D006A	18	BASE ASSY	RCT111A001AB
18	INSULATION,COMP	RCT154D302
19	COMPRESSOR ASSY	AHT201C134CA
20	NUT,FLANGE	SSA914C013A
21	CUSHION,RUBBER	SSA941C346A
22	GASKET,COVER	RSA932C004
23	COVER,TERMINAL	RSA947K005
24	NUT,FLANGE	SSA914C016
25	PWB ASSY(MAIN)	RCT505A005FA
26	PWB ASSY(SUB)	RCT505A004A
27	LABEL,WIRING	RCT011G002AB
28	BLOCK,TERMINAL	SSA561B665
29	BLOCK,TERMINAL	SSA561B702B
30	FUSE(CURRENT)	SSA564A136A
31	HOLDER,FUSE	SSA564B088
32	SENSOR ASSY	SSA551A216L
33	WIRING ASSY	RCV504A001
34	HOLDER,SENSOR	RCV129A001A
35	REACTOR	SSA554B089
36	SPRING,LEAF	RKF941F002
37	SPRING,LEAF	RCJ941F001
38	LABEL,MODEL NAME	RWC011F014AD
