Mitsubishi FDT50VF Spareparts

info@klimaat-totaal.nl

+31(0)224850552

Click on drawing to enlarge


	Mitsubishi FDT50VF			Mitsubishi FDT50VF
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER

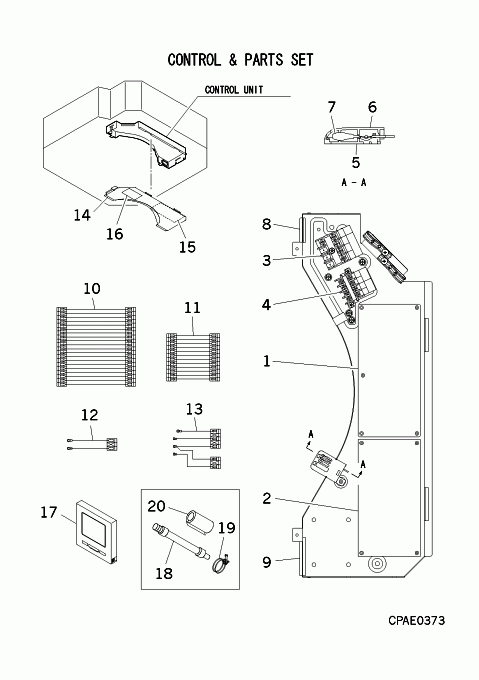

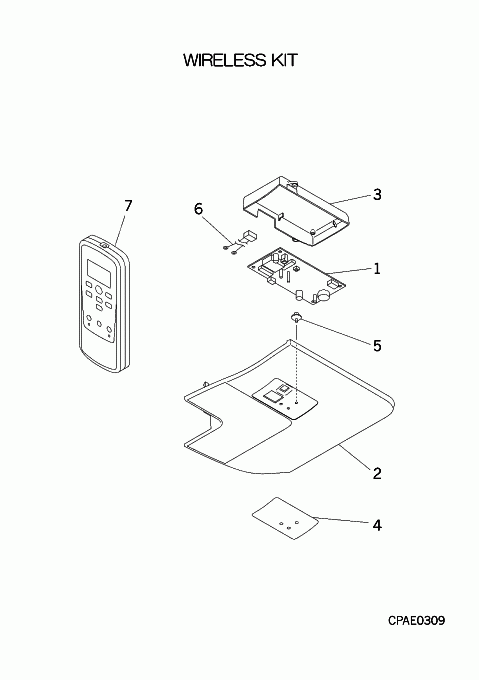

1-13	CONTROL UNIT	PJF501A011DG	1-7	WIRELESS KIT	PJF006A002C
1	PWB ASSY(POWER)	PJA505A230G	1-6	LID ASSY,CORNER	PJF132A008C
2	PWB ASSY(CONTROL)	PJA505A228AF	1	PWB ASSY	PJA505A175
3	BLOCK,TERMINAL	SSA561B702	2	LID ASSY,CORNER	PJF132A009C
4	BLOCK,TERMINAL	SSA561B720A	3	COVER	PJF129A019
5	BASE,HOLDER	PJF129A014	4	SHEET,ORNAMENT	PJA133A751A
6	COVER.HOLDER	PJF129A015	5	BUTTON,PUSH	PJF943A001
7	SENSOR ASSY	PSA551A008B	6	WIRING ASSY	PJF504A013
8	GROMMET	S751W25X	7	CONTROL ASSY,REMOT	PJA502A704AA
9	GROMMET	SSA947B120
10	WIRING(LM)	PJF504A001B
11	WIRING(PWB)	PJG504A001A
12	WIRING(TB,XY)	PJF504A006J
13	WIRING(TB,POWER)	PJF504A036
14	LID,CONTROL BOX	PJF142A006
15	LABEL,WIRING	PJF011G019
16	LABEL,NOTICE	PSA011H032
17	CONTROL ASSY,REMOT	PJZ502A024AB
18-20	PARTS SET	PJF008A001H
18	HOSE,DRAIN	SSA423A101A
19	HOSE CLAMP	V300Y38
20	INSULATION,PIPE	PJA153B008
21	LABEL,MODEL NAME	PJF011F037CD

	Mitsubishi FDT50VF			Mitsubishi FDT50VF
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER

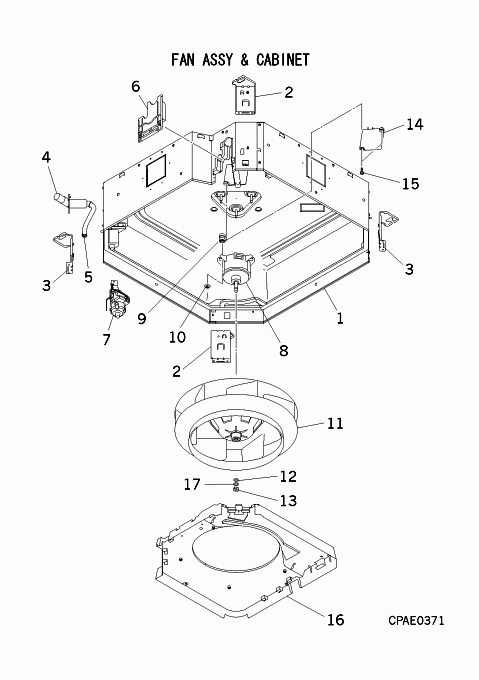

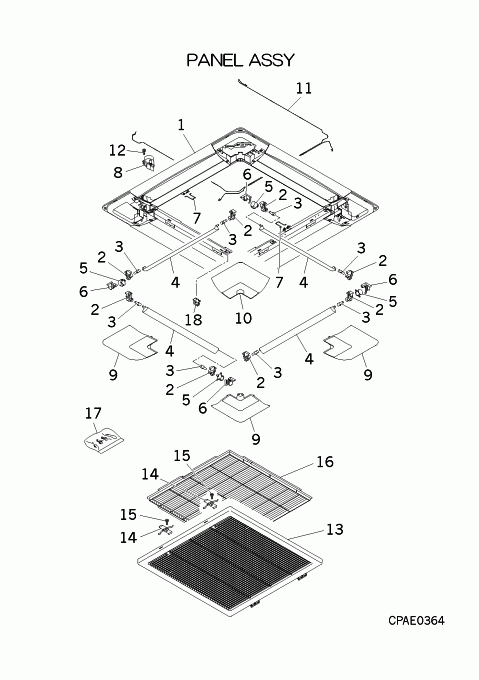

1-18	PANEL ASSY,FRONT	PJF122A009BA	1-3	CABINET ASSY	PJF100A001C
1-12	PANEL ASSY,FRONT	PJF122A005HA	2	HOLDER	PJF032A001
1	PANEL,FRONT	PJF122A006	3	HOLDER	PJF032A001A
2	COLLAR	PJF129A002	4-5	SOCKET ASSY,DRAIN	PJF422C001
3	CRANK	PJF144A001	4	SOCKET	SSA422C107
4	LOUVER,BLOW	PJF436A001	5	HOSE,DRAIN	SSA423A100
5-6	MOTOR ASSY	PJF512T001	6	LID ASSY	PJF132A006B
5	MOTOR,STEPPING	SSA512T052	7	PUMP ASSY, DRAIN	PJF451A002
6	SUPPORT(MOTOR)	PJF129A003	8	MOTOR,DC	SSA512T116
7	WIRE	PJF962C001	9	CUSHION,RUBBER	SSA941C309
8	COVER ASSY	PJF129A004A	10	NUT,FLANGE	SSA914C015
9	LID ASSY,CORNER	PJF132A001	11	FAN,TURBO	SSA431J021
10	LID ASSY,CORNER	PJF132A001C	12	WASHER,S	W205H10
11	WIRING ASSY	PJF504A014B	13	NUT	N001A10
12	TAP-SCREW,CRS-TRS	W011D04X010	14	PLATE	PJF129A013
13-15	GRILLE ASSY,INLET	PJF435A001D	15	TAP-SCREW,CRS-TRS	W011D04X012
13	GRILLE,AIR INLET	PJF435A003G	16	BELLMOUTH	PJF433A001
14	STOPPER	PJF129A007	17	WASHER,SPG	W220R10
15	TAP-SCREW,CRS-TRS	W011D04X010	18	HOSE,DRAIN	SSA423A101A
16	FILTER,AIR	PJF437A001	19	HOSE CLAMP	V300Y38
17	PARTS SET	PJ006A001K
18	SWITCH ASSY(MICRO)	PJF523J001C

	Mitsubishi FDT50VF
	PARTNAME	PARTNUMBER

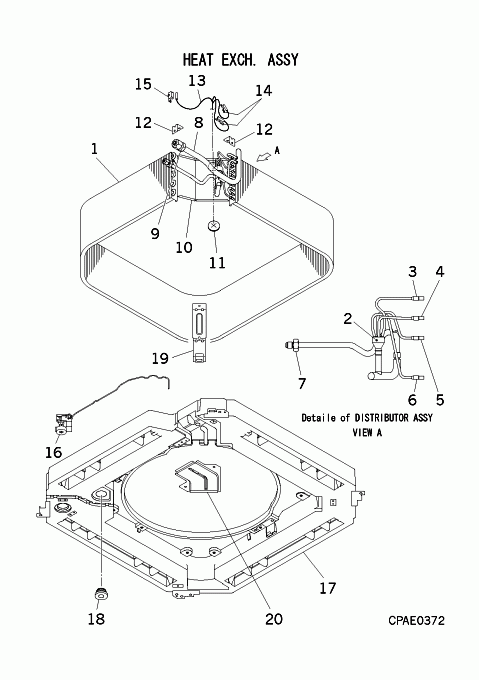

1-15	HEAT EXCH(AIR)	PJF301A001A
1	HEAT EXCH(AIR)	PJF311A001
2-7	DISTRIBUTOR ASSY	PJF315A001
2	DISTRIBUTOR	SSA315A252A
3	CAPILLARY	PJF315B001
4	CAPILLARY	PJF315B001A
5	CAPILLARY	PJF315B001B
6	CAPILLARY	PJF315B001C
7	UNION,SOLDER	SSA323F075
8-9	HEADER ASSY,GAS	PJF315D001A
9	UNION,SOLDER	SSA323F012G
10-100	PLATE ASSY,BAFFLE	PJF141A001
11	GROMMET	S751W25X
12	BRACKET	PJF116A010
13	SENSOR ASSY(TEMP)	PJF551A002K
14	SPRING,LEAF	PSA941F001
15	SPRING,LEAF	PJF941F001
16	SWITCH ASSY,FLOAT	PJF536A002
17-18	PAN ASSY,DRAIN	PJF454A001G
18	PLUG	SSA326A048
19	BRACKET(HEAT EX)	PJF116A030B
20	COVER	PJF142A007

For information or ordering spareparts please contact us: info@klimaat-totaal.nl
