Mitsubishi SRC35ZJ-S Spareparts

info@klimaat-totaal.nl

+31(0)224850552

Click on drawing to enlarge


	Mitsubishi SRC35ZJ-S			Mitsubishi SRC35ZJ-S
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER

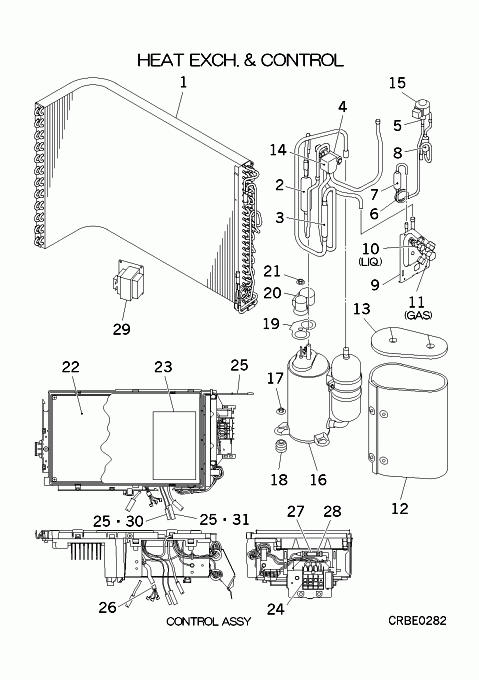

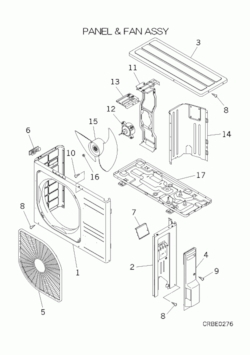

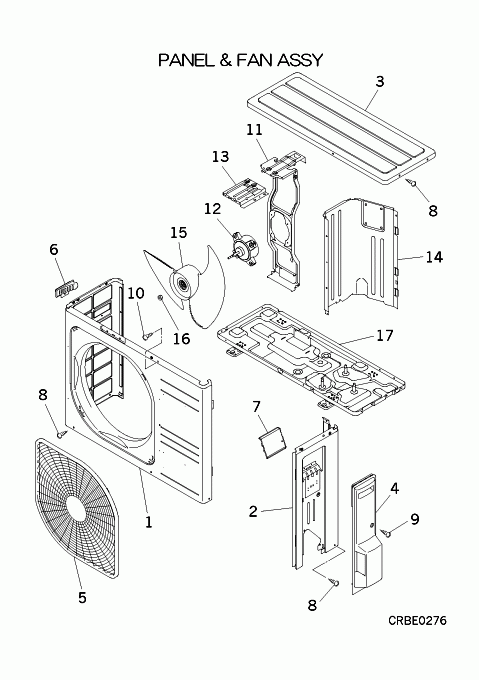

1	HEAT EXCH ASSY(AIR	RCV301A007	1	PANEL,FRONT	RCV122A001
2	PIPE,SHELL	RCD325A700	2	PANEL,SIDE(R)	RCV123A001
3	PIPE,SHELL	RCK325A501C	3	PANEL,TOP	RCV124A001
4	VALVE,S(4WAY)	SSA382C091	4	COVER ASSY,SERVICE	RCV132A003
5-8	PIPING ASSY(EXPAN)	RCV304A009	5	GRILLE,AIR OUTLET	RCV435A001A
5	VALVE,BODY(EXP)	SSA387F051	6	HANDLE	SSA944B036B
6	CAPILLARY	RCV315B001	7	COVER(TB)	RCV142A001
7	STRAINER	SSA357A005A	8	SCREW,TAP	SSA913A034B
8	PIPE,SHELL	RCN325A700	9	SCREW,TAP	SSA913A034C
9	BRACKET,VALVE	RCS116A004	10	SCREW,TAP	SSA913A008F
10	VALVE,SERVICE(1/4"	RCS381A004A	11	BRACKET ASSY	RCV116A005
11	VALVE,SERVICE(3/8"	RCV381A001	12	MOTOR,DC	SSA512T094
12	INSULATION,COMP	RCS154D012	13	BRACKET,MOTOR(U)	RCV116A003
13	INSULATION,COMP	RCS154D009	14	PLATE,BAFFLE	RCV141A001A
14	COIL ASSY,SOLENOID	RSA382F013K	15	PROPELLER	SSA431B253
15	COIL,SOLENOID	SSA382F210AY	16	NUT,TH	SSA914B007AC
16	COMPRESSOR ASSY	AHT201A864DR	17	BASE ASSY	RCV111A001
17	NUT,FLANGE	SSA914C013A
18	CUSHION,RUBBER	SSA941C346
19	GASKET,COVER	RSA932C004
20	COVER,TERMINAL	RSA947K005
21	NUT,FLANGE	SSA914C016
22	PWB ASSY	RCV505A101
23	LABEL,WIRING	RCV011G002AA
24	BLOCK,TERMINAL	SSA561B723
25	SENSOR ASSY	SSA551A216G
26	WIRING ASSY	RCV504A001
27	FUSE(CURRENT)	SSA564A136
28	HOLDER,FUSE	SSA564B088
29	REACTOR	SSA554B099
30	SPRING,LEAF	RKF941F002
31	SPRING,LEAF	RCJ941F001
32	LABEL,MODEL NAME	RWC011F016B
