Mitsubishi SRC20ZJX-S Spareparts

info@klimaat-totaal.nl

+31(0)224850552

Click on drawing to enlarge

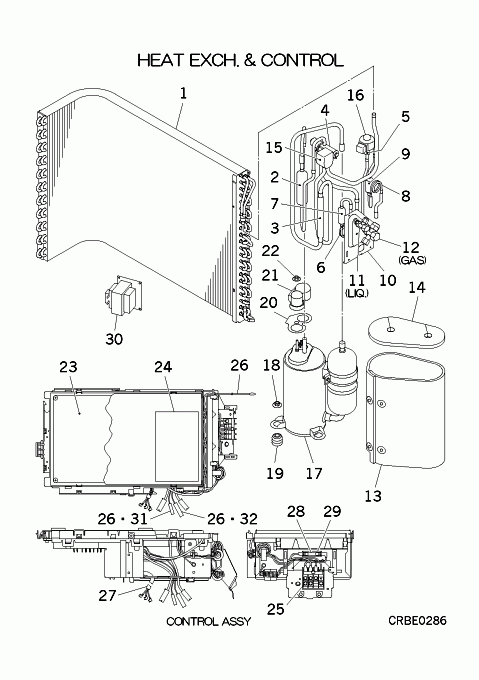

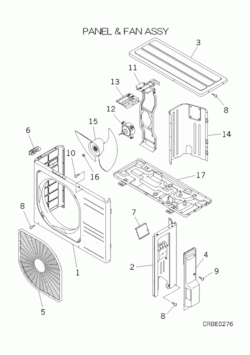

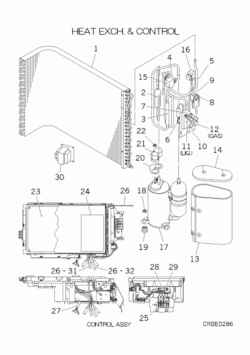

	Mitsubishi SRC20ZJX-S			Mitsubishi SRC20ZJX-S
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER
1	PANEL,FRONT	RCV122A002	1	HEAT EXCH(AIR)	RCV301A100
2	PANEL,SIDE(R)	RCV123A002	2	PIPE,SHELL	RCD325A700
3	PANEL,TOP	RCV124A001	3	PIPE,SHELL	RCK325A501D
4	COVER ASSY,SERVICE	RCV132A004	4	VALVE,S(4WAY)	SSA382C083
5	GRILLE,AIR OUTLET	RCV435A001A	5-9	PIPING ASSY(EXPAN)	RCV304A100
6	HANDLE	SSA944B036B	5	VALVE,BODY(EXP)	SSA387F051
7	COVER(TB)	RCV142A001	6	CAPILLARY	RCV315B001
8	SCREW,TAP	SSA913A034B	7	STRAINER	SSA357A005A
9	SCREW,TAP	SSA913A034C	8	CAPILLARY	RCV315B100
10	SCREW,TAP	SSA913A008F	9	PIPE,SHELL	RCN325A700
11	BRACKET ASSY	RCV116A006	10	BRACKET,VALVE	RCS116A004
12	MOTOR,DC	SSA512T094	11	VALVE,SERVICE(1/4"	RCS381A004A
13	BRACKET,MOTOR(U)	RCV116A003	12	VALVE,SERVICE(3/8"	RCV381A001
14	PLATE,BAFFLE	RCV141A002A	13	INSULATION,COMP	RCS154D012
15	PROPELLER	SSA431B253	14	INSULATION,COMP	RCS154D009
16	NUT,TH	SSA914B007AC	15	COIL ASSY,SOLENOID	RSA382F013G
17	BASE ASSY	RCV111A001	16	COIL,SOLENOID	SSA382F210AY
			17	COMPRESSOR ASSY	AHT201A864DR
			18	NUT,FLANGE	SSA914C013A
			19	CUSHION,RUBBER	SSA941C346
			20	GASKET,COVER	RSA932C004
			21	COVER,TERMINAL	RSA947K005
			22	NUT,FLANGE	SSA914C016
			23	PWB ASSY	RCV505A101B
			24	LABEL,WIRING	RCV011G002AA
			25	BLOCK,TERMINAL	SSA561B723
			26	SENSOR ASSY	SSA551A216G
			27	WIRING ASSY	RCV504A001
			28	FUSE(CURRENT)	SSA564A136
			29	HOLDER,FUSE	SSA564B088
			30	REACTOR	SSA554B099
			31	SPRING,LEAF	RKF941F002
			32	SPRING,LEAF	RCJ941F001
			33	LABEL,MODEL NAME	RWC011F015C
