Mitsubishi SRK60ZJX-S Spareparts

info@klimaat-totaal.nl

+31(0)224850552

Click on drawing to enlarge

Mitsubishi SRK60ZJX-S

Mitsubishi SRK60ZJX-S

Mitsubishi SRK60ZJX-S

Mitsubishi SRK60ZJX-S

PARTNAME

PARTNUMBER

PARTNAME

PARTNUMBER

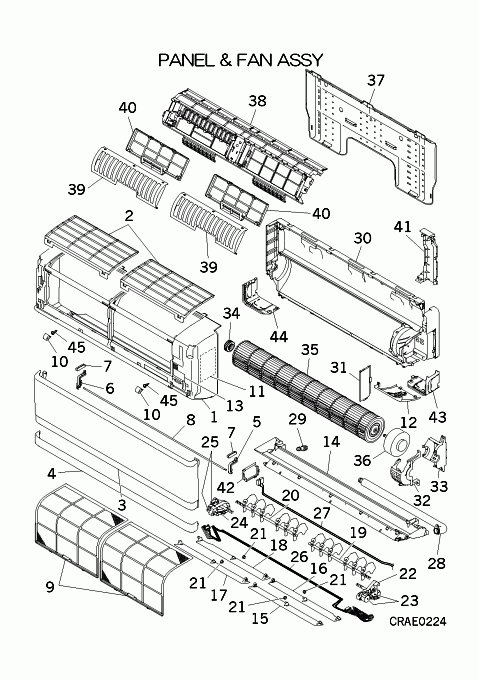

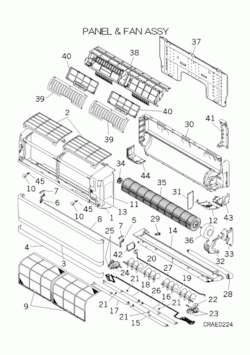

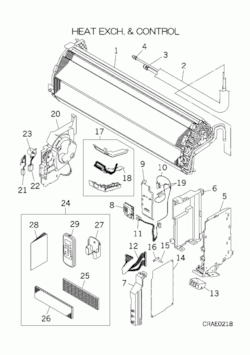

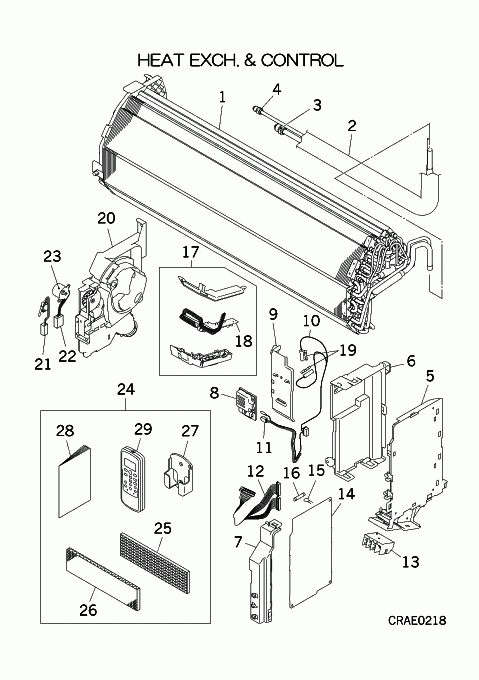

HEAT EXCH ASSY(AIR  RKY301A006  1-13 PANEL ASSY,FRONT  RKY102A001F
2-4 PIPE ASSY  RKY321A001A  1 PANEL ASSY,FRONT  RKY122A002A
3 UNION(SLD)  SSA323F088B  2 GRILLE,AIR IN(TOP)  RKY435A003
4 UNION(SLD)  SSA323F088A  3-8 PANEL ASSY,AIR IN  RKY435A004B
5 BOX,CONTROL(R)  RKY142A001  4 PANEL,ORNAMENT  RKY435A007B
6 BOX,CONTROL(L)  RKY142A002  5 LINK A(R)  RKY144A005
7 LID,CONTROL  RKY132A003  6 LINK A(L)  RKY144A006
8 HOLDER,SENSOR  RKY129A015  7 LINK A  RKY144A007
9 COVER,BEND  RKY129A014  8 SHAFT  RKY144A008
10 SENSOR ASSY  SSA551A223  9 FILTER,AIR  RKY437A001
11 SENSOR(HUMIDITY)  SSA551B017A  10 CAP  RKY129A012
12 HARNESS ASSY  RKY504A001  11 LABEL,WIRING  RKY011G001B
13 BLOCK,TERMINAL  SSA561B702B  12 PLATE ASSY,ORNAMEN  RKY133A008C
14-16 PWB ASSY  RKY505A001DF  13 LABEL  RSA011H026
15 VARISTOR  SSA555B050C  14-29 GRILLE ASSY,AIR OU  RKY435A001B
16 FUSE(CURRENT)  SSA564A132  14 GRILLE,AIR OUT  RKY435A002
17 DISPLAY ASSY  RKY503A001A  15 FLAP ASSY(A)  RKY436A001
18 PWB ASSY  RKY505A003A  16 FLAP ASSY(B)  RKY436A003
19 SPRING,LEAF  RKJ941F001A  17 FLAP ASSY(C)  RKY436A005
20-23 DUCT UNIT ASSY  RKY129A032B  18 FLAP ASSY(D)  RKY436A007
21 SWITCH(MICRO)  SSA523J031  19 LOUVER ASSY  RKY436A009
22 HARNESS ASSY  RKY504A005  20 LOUVER ASSY  RKY436A009A
23 MOTOR,STEPPING  SSA512T049  21 COLLAR  RKW935C200
24 PARTS,STANDARD  RKY008A004B  22-23 LINK ASSY(R)  RKY144A010
25 FILTER,LIGHT CLEAN  RKT437A005C  23 MOTOR,STEPPING  SSA512T052
26 FILTER,CLEAN(BIO)  RKT437A801  24-25 LINK ASSY(L)  RKY144A011
27 HOLDER(REMO-CON)  RKN032A002C  25 MOTOR,STEPPING  SSA512T052
28 MANUAL,INSTRUCTION  RKY012A006A  26 HARNESS ASSY  RKY504A003A
29 CONTROL ASSY,REMOT  RKX502A001C  27 HARNESS ASSY  RKY504A004A
30 LABEL,MODEL NAME  RWA011F009M  28 HOSE,DRAIN  SSA423A102
29 PLUG  SSA326A047
30 BASE ASSY  RKY111A001
31 PLATE,BASE  RKY129A002
32 BRACKET,MOTOR(U)  RKY129A003
33 BRACKET,MOTOR(L)  RKY129A004
34 BEARING,PLANE  SSA923C069
35 IMPELLER  SSA431G050A
36 MOTOR,DC  SSA512T092
37 PLATE,INSTALLATION  RKY032A001
38-40 FILTER UNIT ASSY  RKY129A023B
38 HOLDER,FILTER(B)  RKY129A024
39 HOLDER,FILTER(R)  RKY129A025
40 HOLDER,FILTER  RKY129A028
41 COVER ASSY(PIPE)  RKY129A034
42 COVER,CONNECTOR  RKY129A030
43 LID(R)  RKY132A001A
44 LID(L)  RKY132A002
45 SCREW,TAP  SSA913A007

For information or ordering spareparts please contact us: info@klimaat-totaal.nl

+31(0)224850552
