Mitsubishi SRK50ZJ-S spareparts

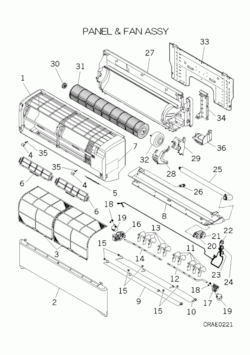

Mitsubishi SRK50ZJ-S spareparts

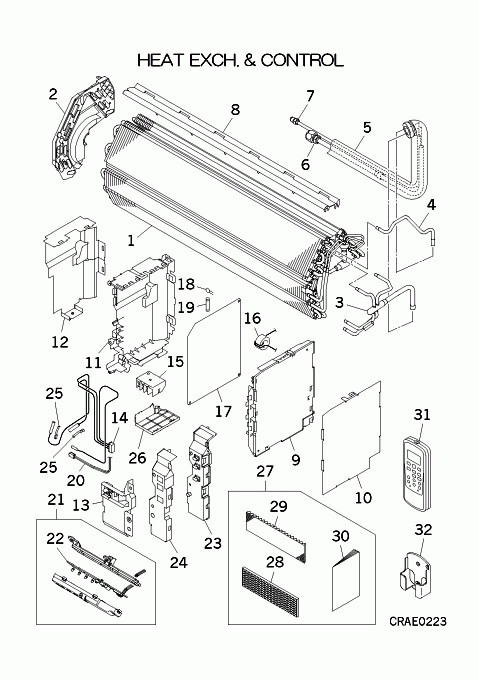

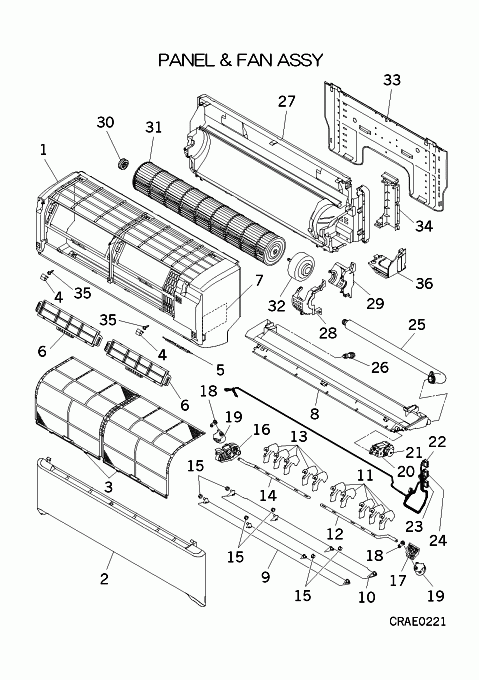

Mitsubishi SRK50ZJ-S Mitsubishi SRK50ZJ-S
PARTNAME PARTNUMBER PARTNAME PARTNUMBER
1-7 PANEL ASSY,FRONT  RLA102A002A  1-8 HEAT EXCH ASSY(AIR  RLA301A013A
1 PANEL,FRONT  RLA122A001B  2 BRACKET(L)  RLA129A004
2 PANEL,AIR INLET  RLA435A003  3 HEADER ASSY  RLA315D004
3 FILTER,AIR  RLA437A001  4 PIPE  RLA321A058
4 CAP  RLA129A017  5-7 PIPE ASSY  RLA321A001B
5 PLATE,ORNAMENT  RLA133A001  6 UNION(SLD)  SSA323F088B
6 HOLDER,FILTER  RKX129A014  7 UNION(SLD)  SSA323F088A
7 LABEL,WIRING  RLA011G001B  8 PLATE,BAFFLE  RLA129A005
8-26 GRILLE ASSY,AIR OU  RLA435A001G  9-10 BOX ASSY,CONTROL(R  RLA142A005
8 GRILLE,AIR OUTLET  RLA435A002  9 BOX,CONTROL(R)  RLA142A003
9 FLAP(A)  RLA436A001  10 COVER,CONTROL(R)  RLA132A003
10 FLAP(B)  RLA436A002  11-12 BOX ASSY,CONTROL(L  RLA142A006
11-12 LOUVER ASSY(R)  RLA436A003  11 BOX,CONTROL(L)  RLA142A004
11 LOUVER  RLA436A005  12 COVER,CONTROL(L)  RLA132A004
12 PLATE,CONNECTING(R  RLA129A008  13 COVER,BEND  RLA129A022
13-14 LOUVER ASSY(L)  RLA436A004  14 SENSOR ASSY  SSA551A223F
13 LOUVER  RLA436A005  15 BLOCK,TERMINAL  SSA561B702B
14 PLATE,CONNECTING(L  RLA129A009  16 KILLER,NOISE  SSA554D183
15 COLLAR  RKW935C200  17-19 PWB ASSY

RLA505A001BD

16 BRACKET,MOTOR(L)  RLA129A013  18 VARISTOR  SSA555B050C
17 BRACKET,MOTOR(R)  RLA129A014  19 FUSE(CURRENT)  SSA564A132
18 CRANK(C)  RKY144A004  20 SENSOR(HUMIDITY)  SSA551B017A
19 MOTOR,STEPPING  SSA512T052  21 DISPLAY ASSY  RLA503A001
20-21 BOX ASSY,GEAR  RLA129A018  22 PWB ASSY(DISPLAY)  RLA505A003
21 MOTOR,STEPPING  SSA512T052  23-24 LID ASSY,CONTROL  RLA132A008
22 HARNESS ASSY  RKS504A100M  23 LID,CONTROL  RLA132A007
23 HARNESS ASSY  RKS504A100N  24 COVER,LID  RLA132A005
24 HARNESS ASSY  RKS504A100P  25 SPRING,LEAF  RKJ941F001A
25 HOSE,DRAIN  SSA423A102  26 COVER ASSY(TB)  RLA129A023
26 PLUG  SSA326A047  27 PARTS,STANDARD  RLA008A004
27 BASE ASSY  RLA111A001A  28 FILTER,LIGHT CLEAN  RKT437A005
28 CASE,MOTOR(U)  RLA129A001  29 FILTER,CLEAN(BIO)  RKT437A801A
29 CASE,MOTOR(L)  RLA129A002  30 MANUAL,INSTRUCTION  RLA012A013
30 BEARING,PLANE  SSA923C114  31 CONTROL ASSY,REMOT  RKX502A001C
31 IMPELLER  SSA431G049A  32 HOLDER(REMO-CON)  RKN032A002C
32 MOTOR,DC  SSA512T081B  33 LABEL,MODEL NAME  RLA011F002C
33 PLATE,INSTALLATION  RLA032A001
34 COVER(PIPE)  RLA129A003
35 SCREW,TAP  SSA913A007
36 LID  RLA132A001A

 For information or ordering spareparts please contact us: info@klimaat-totaal.nl
