Mitsubishi SRC40ZJX-S Spareparts

info@klimaat-totaal.nl

+31(0)224850552

Click on drawing to enlarge


	Mitsubishi SRC40ZJX-S			Mitsubishi SRC40ZJX-S
	PARTNAME	PARTNUMBER		PARTNAME	PARTNUMBER

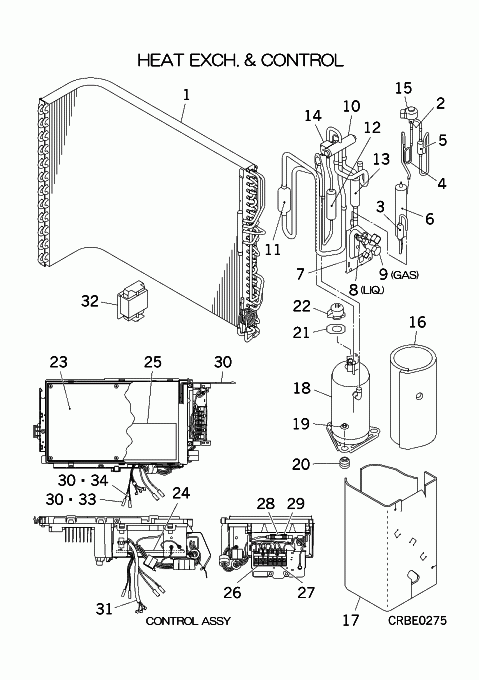

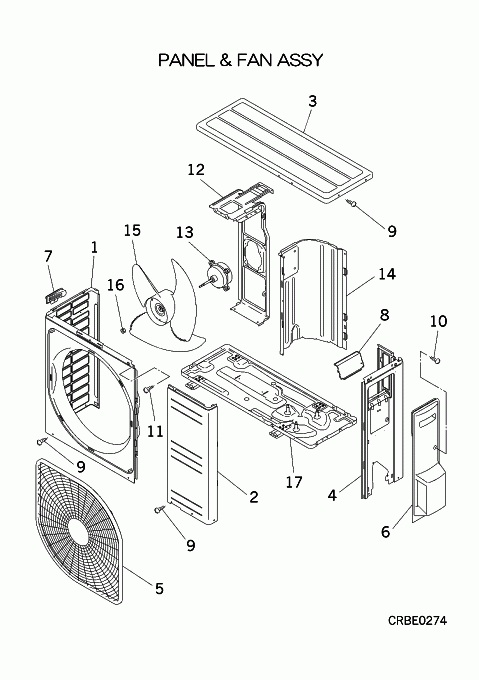

1	HEAT EXCH ASSY(AIR	RCT301A003A	1	PANEL,FRONT	RCT122A001
2-6	PIPING ASSY(EXPAN)	RCT304A011	2	PANEL,SERVICE	RCT122A002
2	VALVE,BODY(EXP)	SSA387F052	3	PANEL,TOP	RCT124A001
3	STRAINER	SSA357A005A	4	PANEL ASSY,REAR	RCT125A002
4	CAPILLARY,SUB	RCN315B001	5	GRILLE,AIR OUTLET	RCT435A001
5	PIPE,SHELL	RCN325A700	6	COVER ASSY,SERVICE	RCT132A002
6	PIPE,SHELL	RCM325A300D	7	HANDLE	SSA944B036
7	BRACKET,VALVE	RCS116A004	8	COVER(TB)	RCT142A004
8	VALVE,SERVICE(1/4"	RCS381A004A	9	SCREW,TAP	SSA913A034B
9	VALVE,SERVICE(1/2"	RCT381A002	10	SCREW,TAP	SSA913A034C
10	VALVE,S(4WAY)	SSA382C068	11	SCREW,TAP	SSA913A008F
11	STRAINER	SSA357A039	12	BRACKET,MOTOR	RCT116A003
12	PIPE,SHELL	SSA325A001CA	13	MOTOR,DC	SSA512T091A
13	PIPE,SHELL	SSA325A001CR	14	PLATE,BAFFLE	RCT141A001A
14	COIL ASSY,SOLENOID	RSA382F013B	15	PROPELLER	SSA431B250
15	COIL,SOLENOID	SSA382F210AY	16	NUT,TH	SSA914B007AC
16	INSULATION,COMP	RCT154D003	17	BASE ASSY	RCT111A001AB
17	INSULATION	RCT154D001
18	COMPRESSOR ASSY	RSA201A032
19	NUT,FLANGE	SSA914C013A
20	CUSHION,RUBBER	SSA941C267
21	GASKET,COVER	RSA932C008
22	COVER,TERMINAL	RSA947K008
23	PWB ASSY(MAIN)	RCT505A003A
24	PWB ASSY(SUB)	RCT505A004
25	LABEL,WIRING	RCT011G002A
26	BLOCK,TERMINAL	SSA561B665
27	BLOCK,TERMINAL	SSA561B702B
28	FUSE(CURRENT)	SSA564A136A
29	HOLDER,FUSE	SSA564B088
30	SENSOR ASSY	SSA551A216D
31	WIRING ASSY	RCT504A003
32	REACTOR	SSA554B089
33	SPRING,LEAF	RKF941F002
34	SPRING,LEAF	RCJ941F001
35	LABEL,MODEL NAME	RWC011F014C
