NEOTECH NTH 10.1 CONDENSWATERPOMP CONDENSATE MINIPUMP

salesteam@ziggo.nl
NEOTECH NTH 10.1 CONDENSWATERPOMP CONDENSATE MINIPUMP, UP TO 15 Kw
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Pomp en tank zijn ontworpen om condensaat op te vangen en af te voeren. De kleine afmetingen en de gemakkelijke bedrading maken de installatie van het product zeer eenvoudig en flexibel.
Installatie in het kanaal kan zowel rechts als links van de airconditioner plaatsvinden. Het alarmsignaal omvat een dubbel contact, normaal open of gesloten.

Description

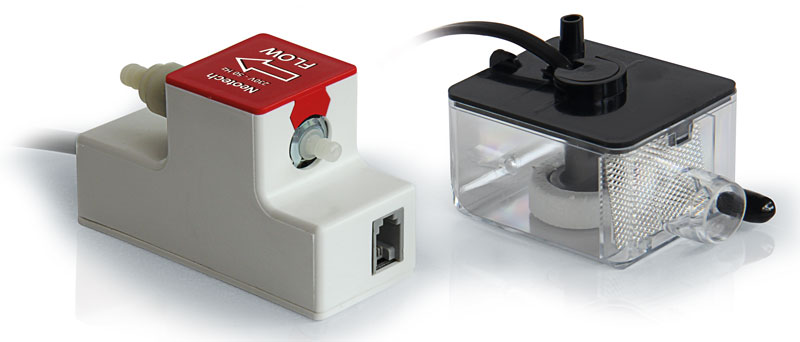

The pump and the tank are designed to collect and discharge the condensate.
The small dimensions and the fast wiring make the installation easy and fl exible.
The duct can be installed on the left or on the right of the air-conditioning system.
The alarm signal includes double contacts normally open or closed.

Into the box
• Condensate minipump
   mm 91 x 33,5 x H 51
   with power and alarm
• Extra large tank
   mm 85 x 45 x H 34,5
• Inlet pipe
   cm 10 x Ø 15 mm
• Breather tube
  cm 10 x Ø 5 mm
• Connecting pipe
   pump-tank 1 mt x Ø 4 mm
• Discharge pipe
  2 mt x Ø 6 mm
• Double sided tape
  To fi x pump and tank

Pump technical data
• Max fl ow ...................................................... 11 l/h
• Max suction .. ................................................ 2 m
• Max head ..................................................... 22 m
• Voltage .............................................. 230V - 50Hz
• Max rated current.......................................30 mA
• Alarm contacts ............NC-NA 5A Resistive 250V
• Weight ........................................................ 1,1 Kg
• Stainless steel inlet fi lter........................Ø 0,2 mm
• Protection class ............................................ IP20
• Certification..................................................... CE
• RoHS 2 compliant ................................ Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
