Description
he pump and the tank are designed to collect and discharge the condensate. The small dimensions and the fast wiring make the installation easy and fl exible. The duct can be installed on the left or on the right of the air-conditioning system. The alarm signal includes double contacts normally open or closed. The Max tank doubles the condensate holding capacity.

Into the box

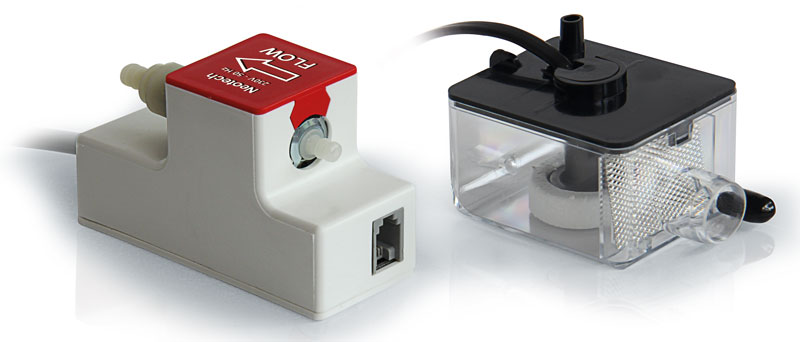

• Condensate minipump
   mm 91 x 33,5 x H 51 with power and alarm cables 2 m
• Extra large tank
   mm 126 x 45 x H 34,5
• Inlet pipe cm 10 x Ø 15 mm
• Breather tube cm 10 x Ø 5 mm
• Connecting pipe
   pump-tank 1 mt x Ø 4 mm
• Discharge pipe
   2 mt x Ø 6 mm
• Double sided tape
   To fi x pump and tank

Pump technical data

• Max fl ow ...................................................... 11 l/h
• Max suction .. ................................................ 2 m
• Max head ..................................................... 22 m
• Voltage .............................................. 230V - 50Hz
• Max rated current.......................................30 mA
• Alarm contacts ............NC-NA 5A Resistive 250V
• Weight ........................................................ 1,1 Kg
• Stainless steel inlet fi lter........................Ø 0,2 mm
• Protection class ............................................ IP20
• Certification..................................................... CE
• RoHS 2 compliant ................................ Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
