NEOTECH NTH 14 SLIM CONDENSWATERPOMP CONDENSATE MINIPUMP

salesteam@ziggo.nl
NEOTECH NTH 14 SLIM CONDENSWATERPOMP CONDENSATE MINIPUMP
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

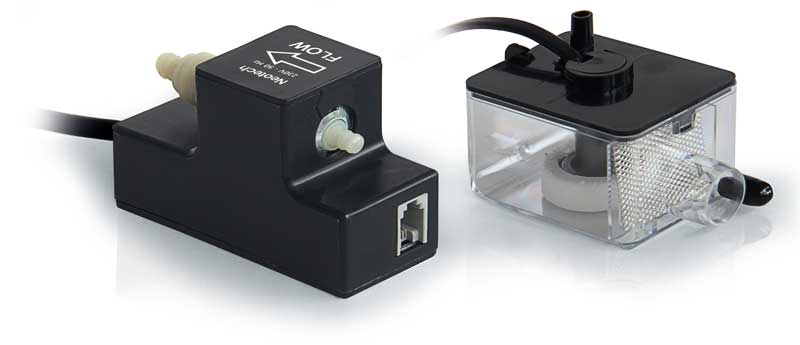

Description
The pump and the tank are designed to collect and discharge the condensate. The small dimensions and the fast wiring make the installation easy and fl exible. The duct can be installed on the left or on the right of the air-conditioning system. The alarm signal includes double contacts normally open or closed.

• Condensate minipump
   mm 175 x 34 x H 41 with power and alarm cables 2 m
• Connector
   Fast electrical connection
• Extra large tank
   mm 85 x 45 x H 34,5
• Inlet pipe
   cm 10 x Ø 15 mm
• Breather tube
  cm 10 x Ø 5 mm
• Discharge pipe
  2 mt x Ø 6 mm
• Double sided tape
  To fix pump and tank

Pump technical data
• Max fl ow ...................................................... 11 l/h
• Max suction .. ................................................ 2 m
• Max head ..................................................... 22 m
• Voltage .............................................. 230V - 50Hz
• Max rated current.......................................50 mA
• Alarm contacts ............NC-NA 5A Resistive 250V
• Weight ........................................................ 1,1 Kg
• Stainless steel inlet fi lter........................Ø 0,2 mm
• Protection class ............................................ IP20
• Certification..................................................... CE
• RoHS 2 compliant ................................ Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
