Description

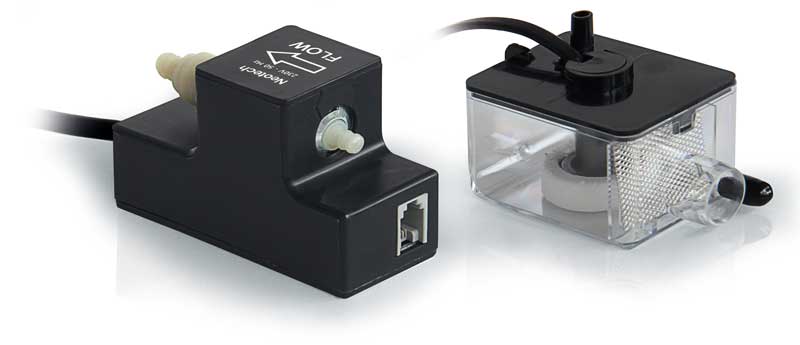

The pump and the tank are designed to collect and discharge the condensate. The small dimensions and the fast wiring make the installation easy and fl exible. The duct can be installed on the left or on the right of the air-conditioning system. The alarm signal includes double contacts normally open or closed.

Into the box
• Condensate
  minipump mm 91 x 33,5 x H 51 with power and alarm cables 2 m
• Connector
  Fast electrical connection
• Inlet pipe
• Extra large tank
  cm 10 x Ø 15 mm
• Breather tube
  cm 10 x Ø 5 mm
• Connecting pipe
  pump-tank 1 mt x Ø 4 mm
• Discharge pipe
  2 mt x Ø 6 mm
• Double sided tape
  To fi x pump and tank

Pump technical data

• Max fl ow ...................................................... 11 l/h
• Max suction .. ................................................ 2 m
• Max head ..................................................... 22 m
• Voltage .............................................. 230V - 50Hz
• Max rated current.......................................50 mA
• Alarm contacts ............NC-NA 5A Resistive 250V
• Weight ........................................................ 1,1 Kg
• Stainless steel inlet fi lter........................Ø 0,2 mm
• Protection class ............................................ IP20
• Certification..................................................... CE
• RoHS 2 compliant ................................ Approved
