NEOTECH NTH 330 WG6 CONDENSWATERPOMP CONDENSATE MINIPUMP

salesteam@ziggo.nl
NEOTECH NTH 330 WG6 CONDENSWATERPOMP CONDENSATE MINIPUMP
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Description

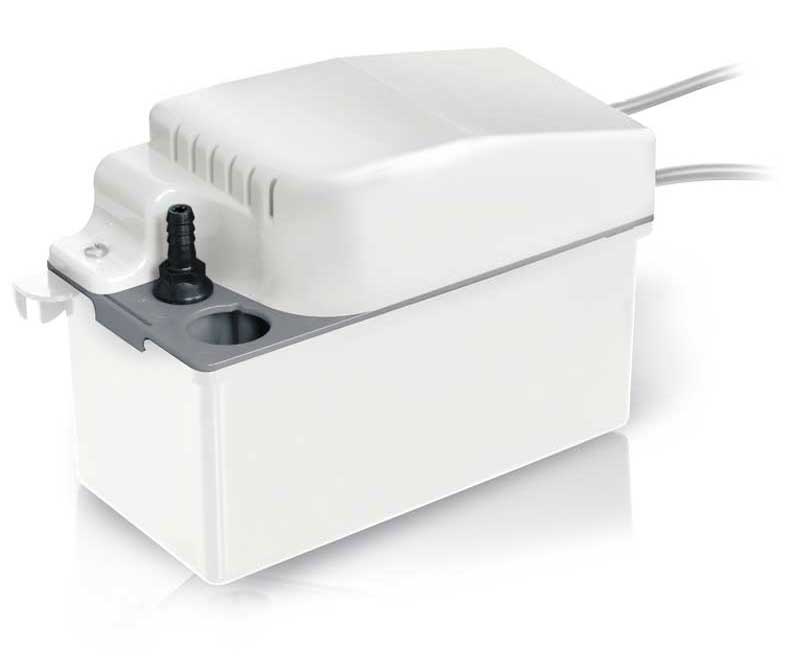

The pump is designed and built to recover the condensate coming from air conditioners or boilers. The alarm signal includes double contacts normally open or closed.. The pump’s motor works with positive head and is protected by a double lip-seal.

Into the box

• Pump
   mm 225 x 104 x H 134 wired with 2 m power cable and alarm
• Delivery pipe
   6 mt x Ø 8 mm
• Inlet pipe adapter
   pipe Ø 50 mm - Ø 25 mm
• Damping tape
   Can be used laterally or under the tank

Pump technical data

• Max flow.....................................................370 l/h
• Max head.....................................................4,6 m
• Voltage..............................................230V - 50Hz
• Absorption max...................................... 0,75 mA
• Alarm contacts............NA NC 5A Resistive 250V
• Weight........................................................2,3 Kg
• Tank volume..................................................0,8 lt
• Protection class............................................ IP20
• Condensate max condense......................... 60°C
• Condensate PH..............................................>2,8
• Power cable, Schuko plug and alarm..............2 m
• Non return valve included........................ Ø 8 mm
• Screws, bolts, nuts.................Stainless Steel 304
• Certification..................................................... CE
• RoHS 2 compliant .................................Approved


LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
