Acid condensate centrifugal pump. up to 287 kW

Description

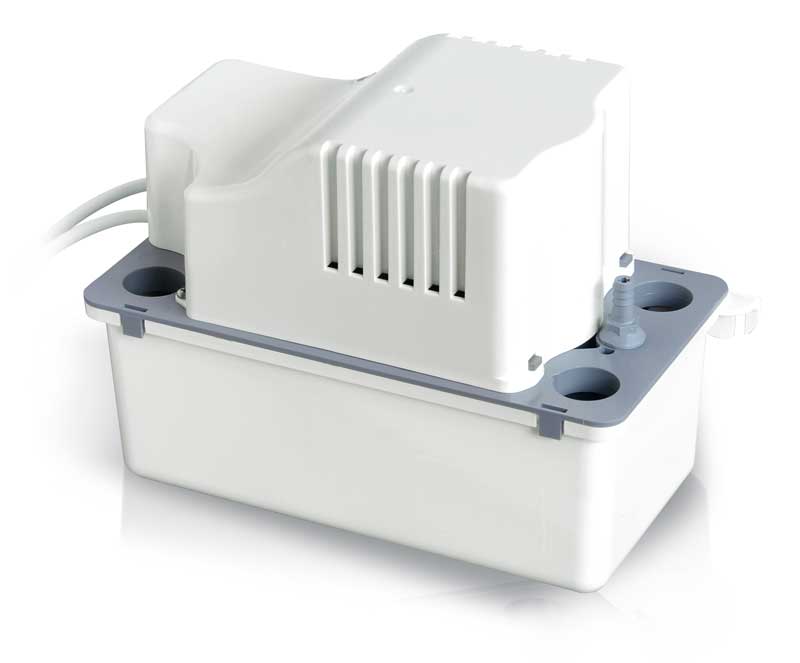

The pump is designed and built to recover the condensate coming from air
conditioners or boilers. The alarm signal includes double contacts normally open
or closed. The pump’s motor works with positive head and is protected by a
double lip-seal.

Into the box
• Pump
  mm 285 x 140 x H 198
  wired with 2 m power cable and alarm
• Delivery pipe
  6 mt x Ø 8 mm
• Inlet pipe adapter
  pipe Ø 50 mm - Ø 25 mm
• Damping tape
  Can be used laterally
  or under the tank.
• Cable tie for the adaptor

Pump technical data
• Max flow.....................................................360 l/h
• Voltage..............................................230V - 50Hz
• Absorption max.........................................0,6 mA
• Alarm contacts............NA NC 5A Resistive 250V
• Weight........................................................2,4 Kg
• Tank volume..................................................2,3 lt
• Protection class............................................ IP20
• Condensate max condense......................... 60°C
• Condensate PH..............................................>2,8
• Power cable, Schuko plug and alarm..............2 m
• Non return valve included........................ Ø 8 mm
• Screws, bolts, nuts.................Stainless Steel 304
• RoHS 2 compliant .................................Approved

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
