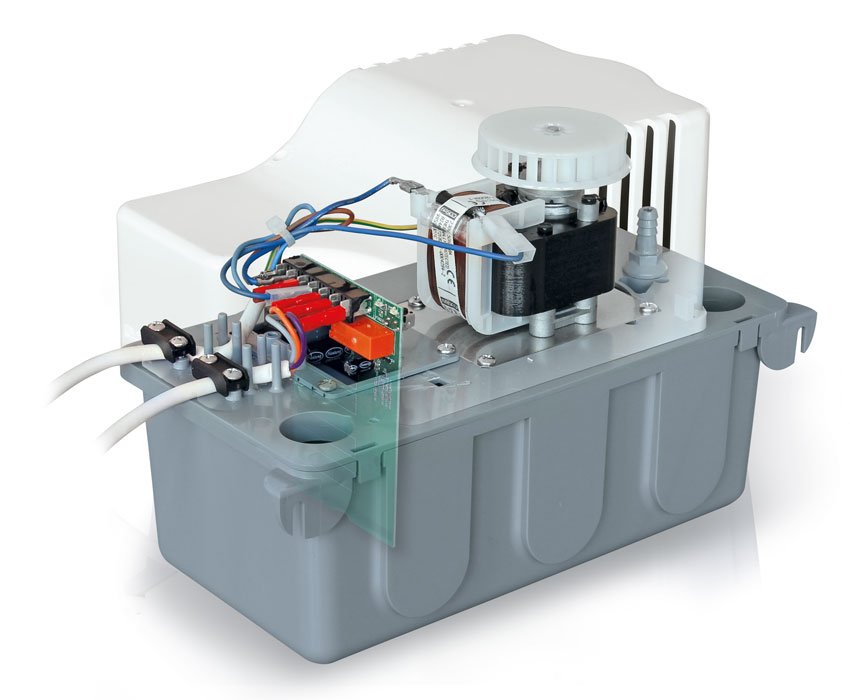

NEOTECH NTH 360 DIGITAL CONDENSWATERPOMP CONDENSATE MINIPUMP

salesteam@ziggo.nl
NEOTECH NTH 360 DIGITAL CONDENSWATERPOMP CONDENSATE MINIPUMP
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Description
Pump for evacuation of condensate from boilers, the level of condensate inside the pump is managed without moving mechanical components, this provides great reliability. The functionality is guaranteed by software also with the presence of dirt. The new internal structure of the pump provides greater insulation from corrosive fumes and vapours from the tank. NTH360 DIGITAL pump can be powered with an independent system from the boiler maintaining the alarm intervention active.

Into the box
• Pump
   mm 285 x 140 x H 198 wired with 2 m power cable and alarm.
• Delivery pipe
  6 mt x Ø 8 mm
• Inlet pipe adapter
   pipe Ø 50 mm - Ø 25 mm
• Damping tape
  Can be used laterally or under the tannk.

Pump technical data
• Max flow.....................................................360 l/h
• Max head.....................................................5,2 m
• Voltage..............................................230V - 50Hz
• Absorption max.........................................0,6 mA
• Alarm contacts............NA NC 5A Resistive 250V
• Weight........................................................2,4 Kg
• Tank volume..................................................2,3 lt
• Protection class............................................ IP20
• Condensate max condense......................... 60°C
• Condensate PH..............................................>2,8
• Power cable, Schuko plug and alarm..............2 m
• Non return valve included........................ Ø 8 mm
• Screws, bolts, nuts.................Stainless Steel 304
• Certification..................................................... CE
• RoHS 2 compliant .................................Approved

Max 287 kW
Sound level 44 dBA

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
