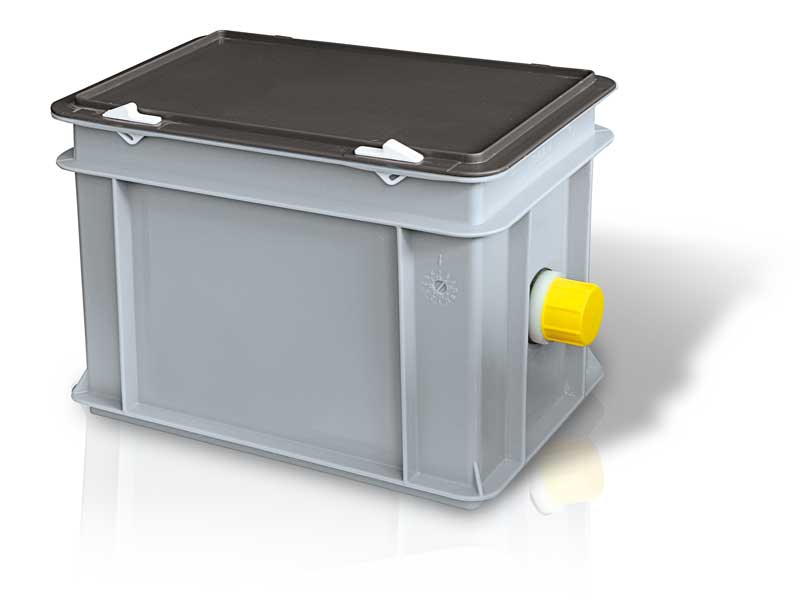

NEOTECH PH7-30 ACID CONDENSATE NEUTRALIZER
Acid condensate pump with neutralizer.
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Acid condensate neutralizers are used to neutralize the exported condensate from the boilers. The condensate flows through granulated neutralization minerals, and the result of this procedure are:

-Absorption of nitrates and sulphates
-Increase of pH
-Acidity check with litmus paper
-Easy and fast recharge and maintenance

Description

A good practice is to neutralize the acid condensate coming from the boilers. This condensate fl ows through neutralization granulate inside the neutralization box which has two functions: fi rst, the absorption of nitrates and sulphates; second, rising the PH. The condensate acidity could be checked with a litmus paper to determine the PH (available as accessory), or with appropriate PH test.

Into the box

• Neutralizer
  mm 420 x 300 x H 150
• Neutralkit
  bag neutralizer refi ll 25 Kg

Technical data

• Max generator power..........................1500 kW
• Max flow.................................................150 l/h
• Minimum inlet head..............................170 mm
• Voltage power................................................no
• Inlet and outlet connection........................1”M
• Dimensions cm...................................42x30x15
• Mineral load..............................................25 Kg
• Long-life at max flow...............................1800 h

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
