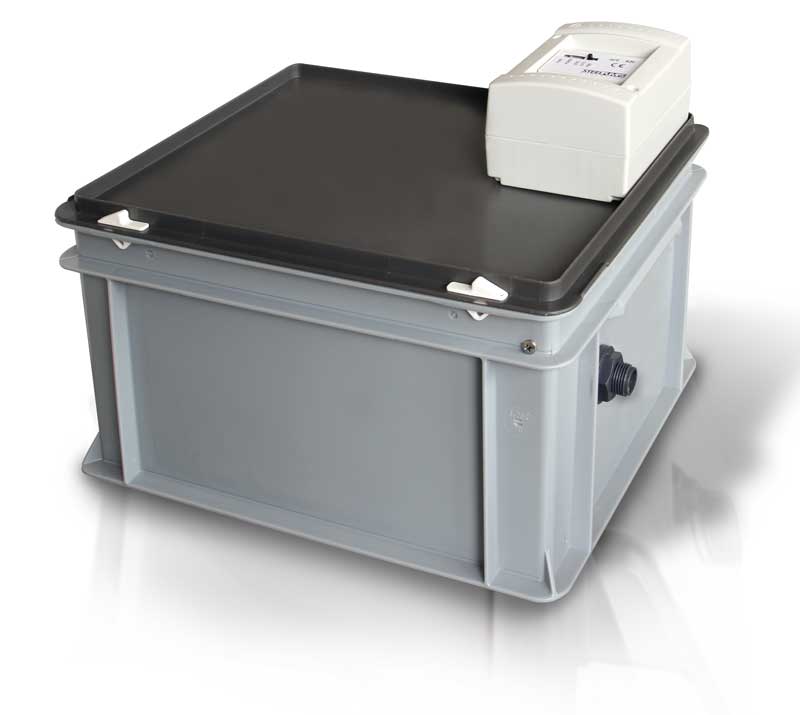

NEOTECH NTH 3000-PH30 ACID CONDENSATE NEUTRALIZER

salesteam@ziggo.nl
NEOTECH NTH 3000-PH30 ACID CONDENSATE NEUTRALIZER
Acid condensate pump with neutralizer.
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Acid condensate neutralizers are used to neutralize the exported condensate from the boilers. The condensate flows through granulated neutralization minerals, and the result of this procedure are:

Absorption of nitrates and sulphates
Increase of pH
Acidity check with litmus paper
Easy and fast recharge and maintenance
Pump operation for condensate forced flow
Pump control unit

Description

The neutralizer station of acid condensate with the pump is easy to be installed and allows the evacuation of condensate when it is not possible to discharge by gravity. The strong structure of the tank and the pump NTH3000 make this product reliable. The recharge and the maintenance are easy and fast.
A control unit activates the pump through probes. An external system signals the station status and through this system allows manual tests on the working pump.

Into the box

• Neutralizer
  mm 480 x 300 x H 320 wired with electric cable power supply 1,5 m Schuko
• Neutralkit
  neutralizer refill 13 Kg

Technical data

• Max generator power..............................1200 kW
• Max flow.....................................................120 l/h
• Minimum inlet head.................................210 mm
• Voltage.................................................220V-50Hz
• Absorption ...................................................50 W
• Inlet connection............................................1” M
• Outlet connection.......................................1/2” F
• Dimensions cm.....................................48x30x32
• Mineral load.................................................13 Kg
• Long-life at max flow...................................1100 h

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
