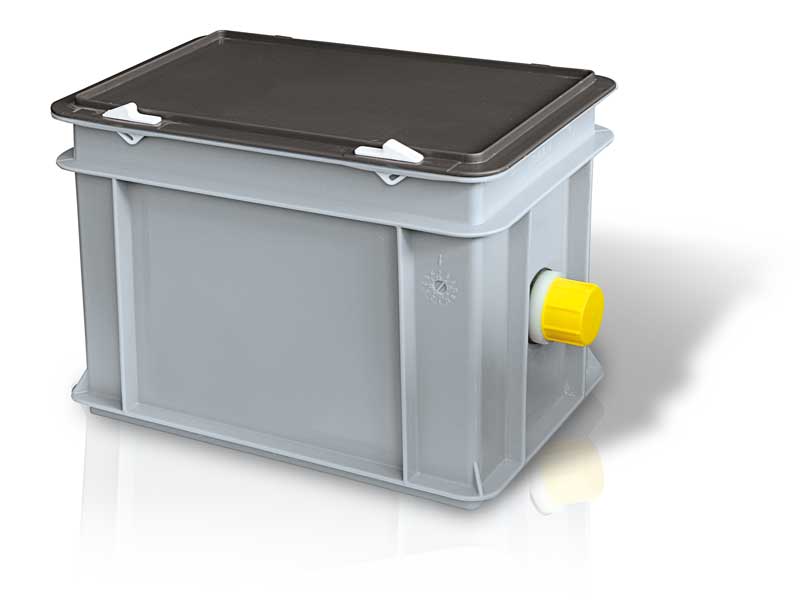

NEOTECH PH7-25 ACID CONDENSATE NEUTRALIZER

salesteam@ziggo.nl
NEOTECH PH7-25 ACID ACID CONDENSATE NEUTRALIZER
Acid condensate pump with neutralizer, up to 800 kW
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Description

A good practice is to neutralize the acid condensate coming from the boilers. This condensate fl ows through neutralization granulate inside the neutralization box which has two functions: fi rst, the absorption of nitrates and sulphates; second, rising the PH. The condensate acidity could be checked with a litmus paper to determine the PH (available as accessory), or with appropriate PH test.

Into the box

• Neutralizer
  mm 420 x 300 x H 150
• Neutralkit neutralizer refi ll 15 Kg

Technical data

• Max generator power............................800 kW
• Max flow...................................................45 l/h
• Minimum inlet head..............................130 mm
• Voltage power................................................no
• Inlet and outlet connection........................1”M
• Dimensions cm...................................42x30x15
• Mineral load..............................................15 Kg
• Long-life at max flow...............................4450 h

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
