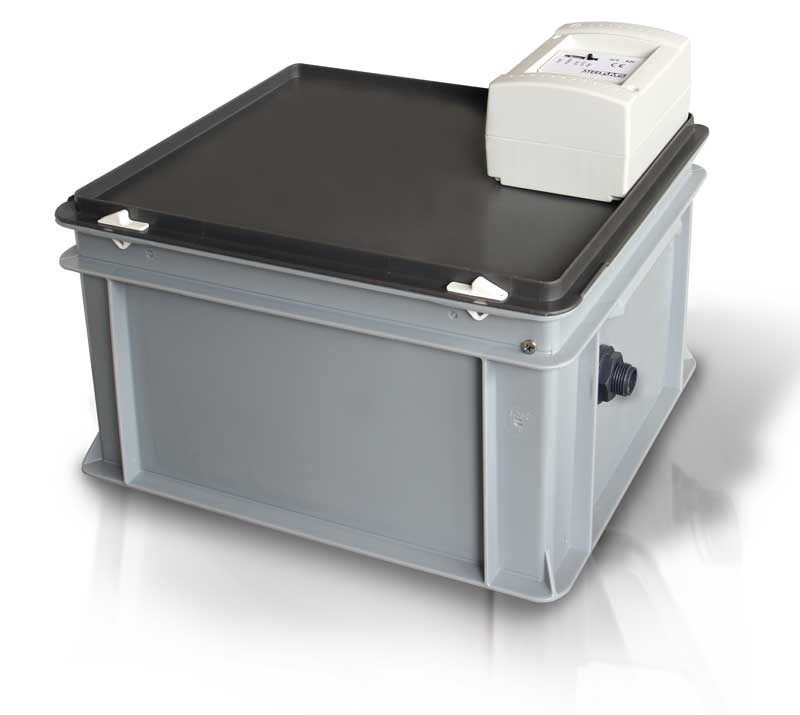

NEOTECH NTH 3000-PH67 ACID CONDENSATE NEUTRALIZER

salesteam@ziggo.nl
NEOTECH NTH 3000-PH67 ACID CONDENSATE NEUTRALIZER
Acid condensate neutralizer station with submerged pump.
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Acid condensate neutralizers are used to neutralize the exported condensate from the boilers. The condensate flows through granulated neutralization minerals, and the result of this procedure are:

* Absorption of nitrates and sulphates
* Increase of pH
* Acidity check with litmus paper
* Easy and fast recharge and maintenance
* Pump operation for condensate forced flow
* Pump control unit

Description

The neutralizer station of acid condensate with the pump is easy to be installed and allows the evacuation of condensate when it is not possible to discharge by gravity. The strong structure of the tank and the pump NTH3000 make this product reliable. The recharge and the maintenance are easy and fast.

A control unit activates the pump through probes. An external system signals the station status and through this system allows manual tests on the working pump.

The neutralizer station must be installed close to the boiler, and in a horizontal position. The input pipe to the station must refl ect the technical parameters recommended by our technical office.

Into the box

• Neutralizer
  mm 640 x 400 x H 320 wired with electric cable power supply 1,5 m Schuko
• Neutralkit
  2 neutralizer refi ll bags 25 kg each

Technical data

• Max generator power..............................2600 kW
• Max flow.....................................................260 l/h
• Minimum inlet head.................................210 mm
• Voltage.................................................220V-50Hz
• Absorption ...................................................50 W
• Inlet connection.........................................1”¼ M
• Outlet connection.......................................1/2” F
• Dimensions cm.....................................64x40x32
• Mineral load.................................................50 Kg
• Long-life at max flow...................................1100 h

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
