NEOTECH NTH 3000-PH37 ACID CONDENSATE NEUTRALIZER

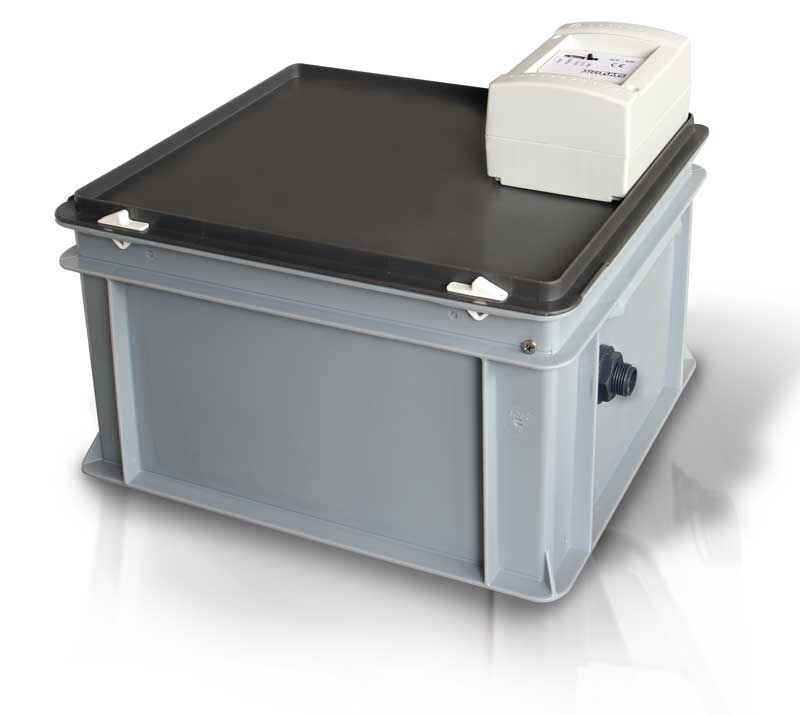

Acid condensate neutralizer station with submerged pump.
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Description
The neutralizer station of acid condensate with the
pump is easy to be installed and allows the evacuation
of condensate when it is not possible to discharge by
gravity. The strong structure of the tank and the pump
NTH3000 make this product reliable. The recharge and
the maintenance are easy and fast.

A control unit activates the pump through probes. An
external system signals the station status and
through this system allows manual tests on the working pump.

The neutralizer station must be installed close
to the boiler, and in a horizontal position.
The input pipe to the station must refl ect the
technical parameters recommended by our
technical office.

Into the box
• Neutralizer
  mm 640 x 400 x H 320
  wired with electric cable
  power supply 1,5 m Schuko
• Neutralkit
  2 neutralizer refill bags
  25 kg each

Technical data
• Max generator power..............................2600 kW
• Max fl ow.....................................................260 l/h
• Minimum inlet head.................................210 mm
• Voltage.................................................220V-50Hz
• Absorption ...................................................50 W
• Inlet connection.........................................1”¼ M
• Outlet connection.......................................1/2” F
• Dimensions cm.....................................64x40x32
• Mineral load.................................................50 Kg
• Long-life at max fl ow...................................1100 h
